Canon Print Heads

Which Canon Print Head Do I Need?

Each Canon imagePROGRAF printer takes one specific print head, and they are not interchangeable. Find your printer model below, or check the model name on the front of the printer.

When Should You Replace a Canon Print Head?

• Missing lines or banding that remain after several head cleanings
• Nozzle check gaps that cleaning cannot clear
• A print head error message on the printer's control panel
• Colour shifts or streaks that persist after recalibration

Before replacing the print head, run a nozzle check and up to two head cleanings. If gaps remain, a new genuine Canon print head restores the printer's original quality. Make sure every ink tank has enough ink first, as the printer fills the new head with ink and then runs an automatic head alignment.

How to Replace a Canon Print Head

1. Check your ink levels. Make sure every ink tank has enough ink, as filling the new head uses ink.
2. Start the replacement from the printer menu. On the control panel, choose the print head replacement option under maintenance. Menu names vary by model, so follow the on-screen steps.
3. Remove the old print head. Open the top cover, raise the print head lock lever and lift out the old head.
4. Fit the new print head. Remove the protective parts without touching the nozzles or electrical contacts, then seat the head and lower the lock lever.
5. Let the printer finish. Close the cover. The printer fills the head with ink and runs an automatic head alignment. Then print a nozzle check to confirm.

Need help? Call our technical support team free on 0800 970 2244.

Why Choose Genuine Canon Print Heads?

• Original print quality: Canon FINE print heads give the fine detail, sharp lines and consistent colour your printer was designed for
• Made for Canon inks: matched to Canon PFI ink cartridges and media profiles, helping avoid clogging and colour shifts
• 12-month warranty when used with genuine Canon inks
• Complete the service: replace the Canon maintenance cartridge when the printer asks, to keep the new head in top condition

Why Buy From iPF Store?

• Canon Platinum Partner, specialising in Canon imagePROGRAF large format printers
• 100% genuine Canon products sourced through authorised Canon distribution
• Free next working day UK delivery on print heads ordered before 4.30pm
• Education discounts for schools, colleges and universities, and bulk order discounts for businesses
• Price Match Promise and free technical support on 0800 970 2244
• Independently verified reviews on Trusted Shops and Google

Canon Print Heads: Frequently Asked Questions

Which print head does the Canon PRO-2600, PRO-4600 or PRO-6600 use?

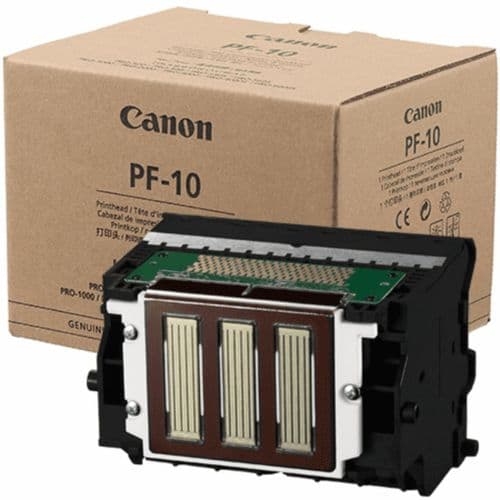

The PRO-2600, PRO-4600 and PRO-6600 use the Canon PF-10 print head (0861C001AA), the same head as the PRO-1000, PRO-2000, PRO-4000, PRO-6000 and GP-2000, GP-4000 and GP-x600S Series.

Which print head does the Canon TM or TX Series use?

The imagePROGRAF TA, TM and TX Series use the Canon PF-06 print head (2352C001AB), including the TM-200, TM-300, TM-250, TM-350, TX-3100 and TX-4100.

Which print head does the Canon TC-20 use?

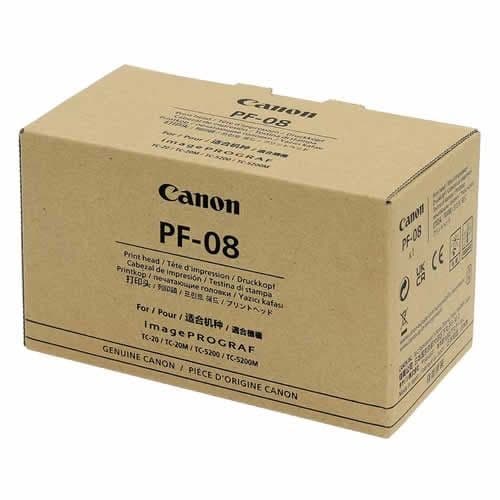

The TC-20, TC-20M, TC-21 and TC-21M use the Canon PF-08 print head (5706C001AA).

Which print head does the Canon GP-200 or GP-300 use?

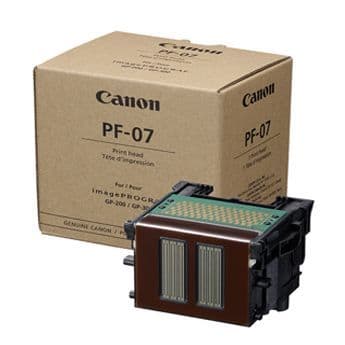

The GP-200 and GP-300 use the Canon PF-07 print head (5230C001AA). The GP-2000, GP-4000 and GP-x600S use the PF-10 instead.

Which print head does my Canon iPF printer use?

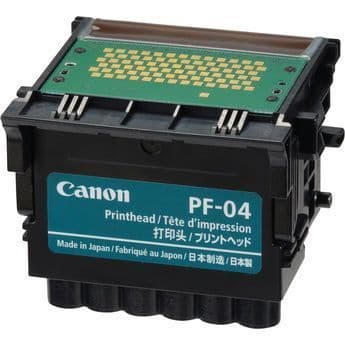

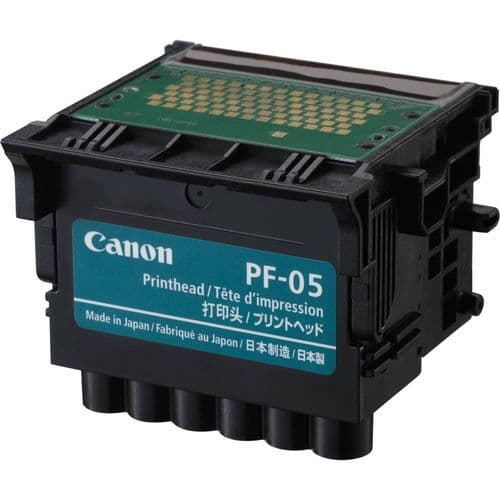

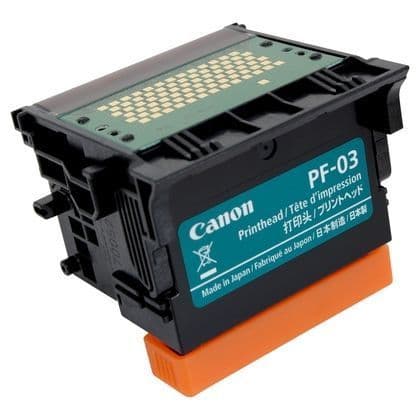

The iPF5000, iPF6100, iPF700, iPF8100 and iPF9100 Series use the PF-03 (2251B001AA), the iPF650 to iPF850 Series use the PF-04 (3630B001AA), and the iPF6300, iPF6400, iPF8300, iPF8400 and iPF9400 Series use the PF-05 (3872B001AA).

How do I replace a Canon print head?

Check your ink levels, then choose the print head replacement option in the printer's maintenance menu and follow the on-screen steps. The printer fills the new head with ink and runs an automatic head alignment.

Are your Canon print heads genuine?

Yes. Every print head we sell is a brand new, genuine Canon print head supplied by iPF Store, a Canon Platinum Partner, with a 12-month warranty when used with genuine Canon inks.

How quickly will my print head arrive?

Order before 4.30pm for free next working day UK delivery. Call 0800 970 2244 for assistance.
