Canon PF-06 Print Head (2352C001AB) for imagePROGRAF TM, TX & TA Series

Genuine Canon PF-06 Print Head (2352C001AB) for imagePROGRAF TA, TM & TX Series

For use with: Canon imagePROGRAF TA-20, TA-30, TM-200, TM-205, TM-240, TM-250, TM-255, TM-300, TM-305, TM-340, TM-350, TM-355, TM-500, TM-510, TM-510M, TM-515, TM-600, TM-610, TM-610M, TM-615, TX-2000, TX-2100, TX-3000, TX-3100, TX-3200, TX-3300, TX-3310 MFP, TX-4000, TX-4100, TX-4200, TX-4300 and TX-4310 MFP

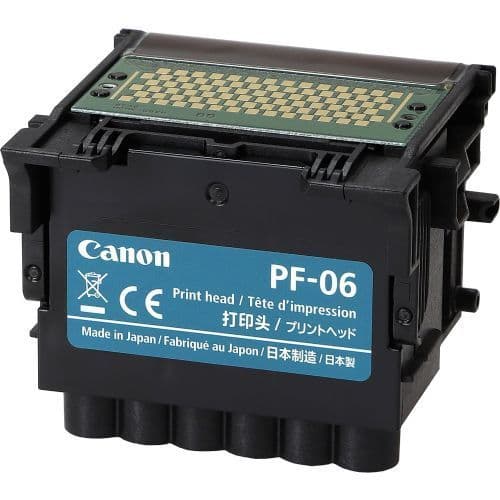

The Canon PF-06 Print Head (2352C001AB) is the genuine Canon replacement printhead for the imagePROGRAF TA, TM and TX Series. Built with Canon FINE (Full-photolithography Inkjet Nozzle Engineering) technology, it fires ink droplets as small as 4 picolitres to produce sharp lines, fine text and smooth colour on CAD drawings, maps, posters and presentation graphics.

A new PF-06 is the fix when nozzle checks keep showing gaps after cleaning, when prints show banding or missing lines that cleaning cannot clear, or when your printer reports a print head error. Replacing the head restores the print quality your printer was designed to deliver.

Free next working day UK delivery when you order before 4.30pm, with a 12-month warranty when used with genuine Canon inks. Not sure the PF-06 is right for your printer? Call our team on 0800 970 2244 and we will confirm it before you order. iPF Store is a Canon Platinum Partner, with education discounts and bulk order discounts on request.

See all Canon print heads. Also known as: PF06, PF-06 printhead, Canon 2352C001, 2352C001AB, 2352C001AA (previous part number), EAN 4549292098044, Canon TM-200 print head, Canon TM-300 print head, Canon TA-20 print head, Canon TA-30 print head, Canon TX-3000 print head, Canon TX-3200 print head, Canon TX-4200 print head, Canon TX-3300 print head, Canon TX-4300 print head.

PF-06 at a Glance

Compatible Canon imagePROGRAF Printers

The PF-06 is the print head for all 32 printers ticked below, across the TA, TM and TX Series. Click a printer to see all of its compatible inks and supplies.

✓ = PF-06 fits. ✗ = does not fit; use the print head shown instead. The PF-06 is one print head across the TA, TM and TX Series, so the same part number fits every ticked model. Check the model name on the front of your printer before ordering.

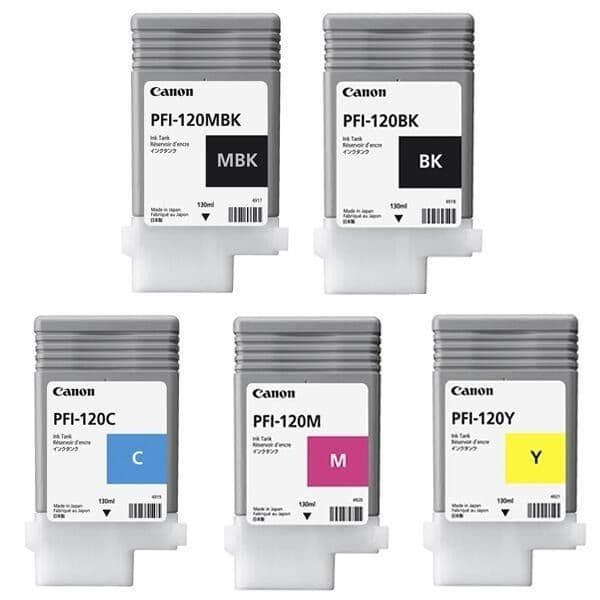

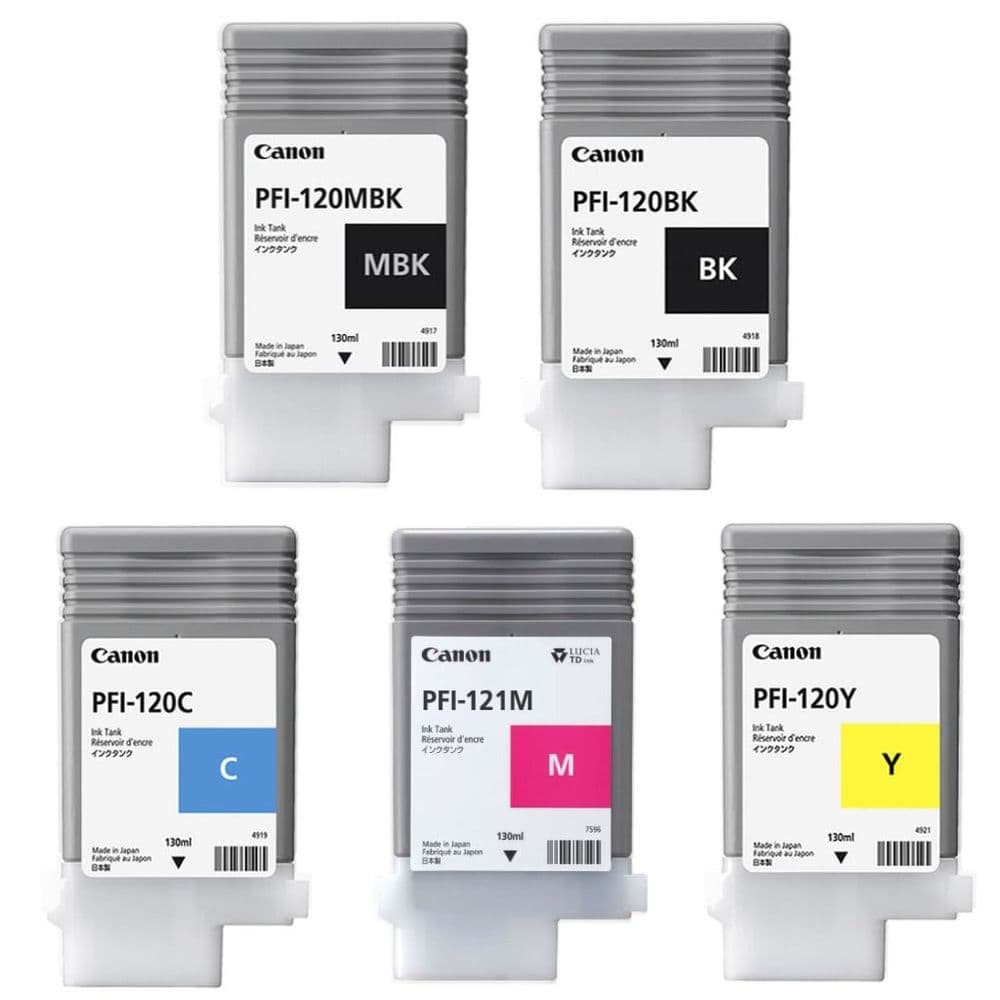

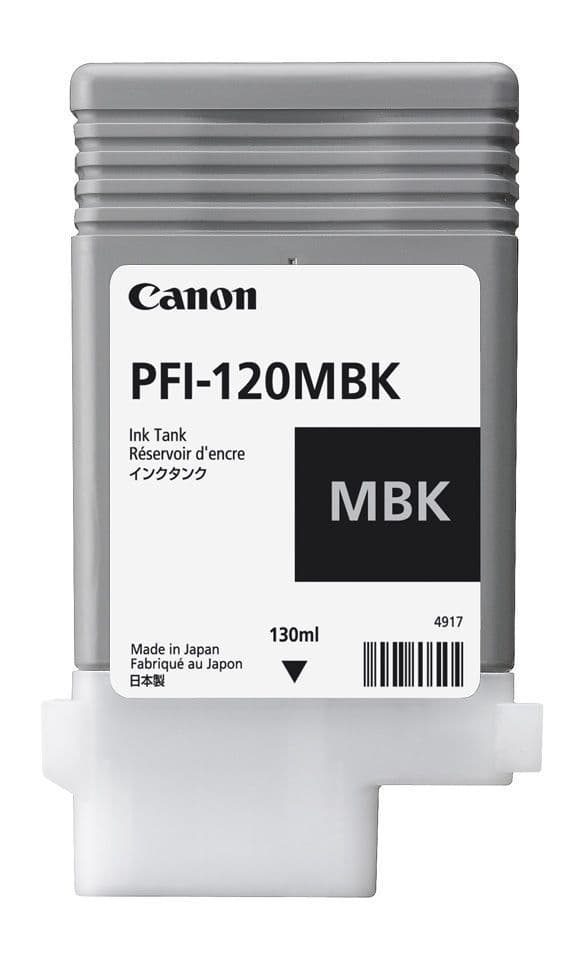

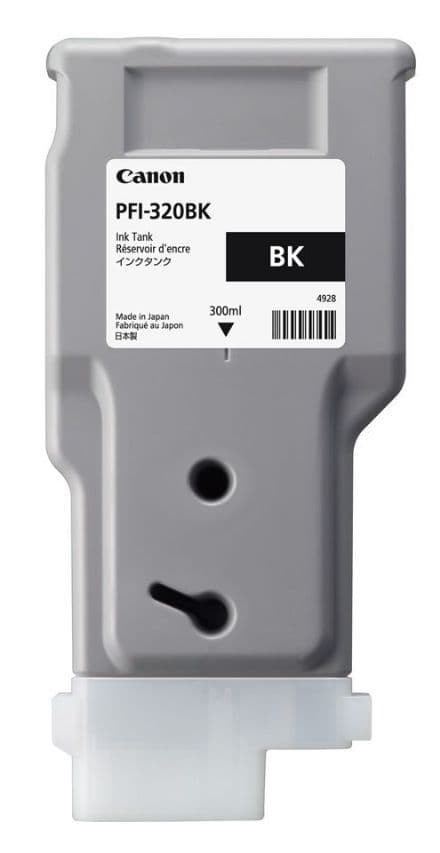

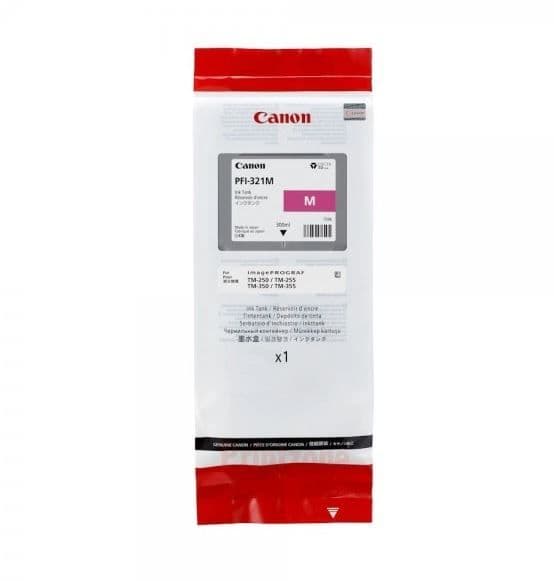

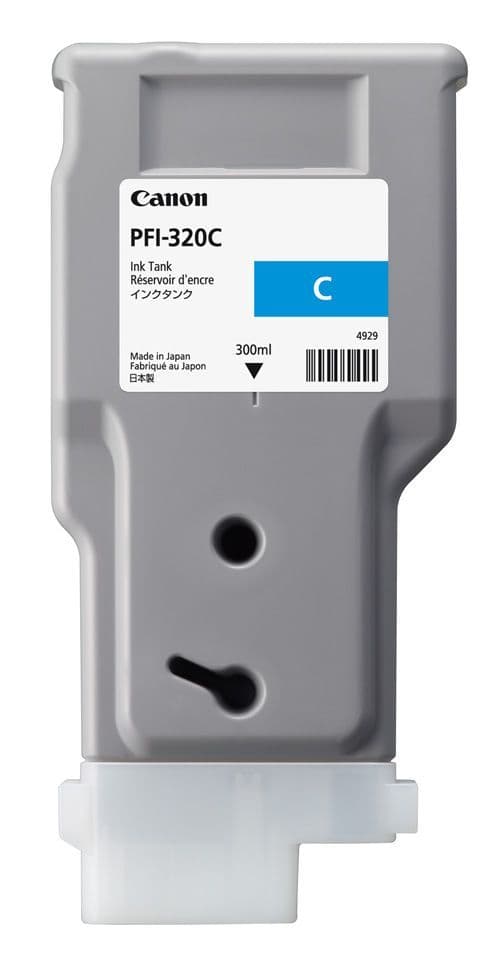

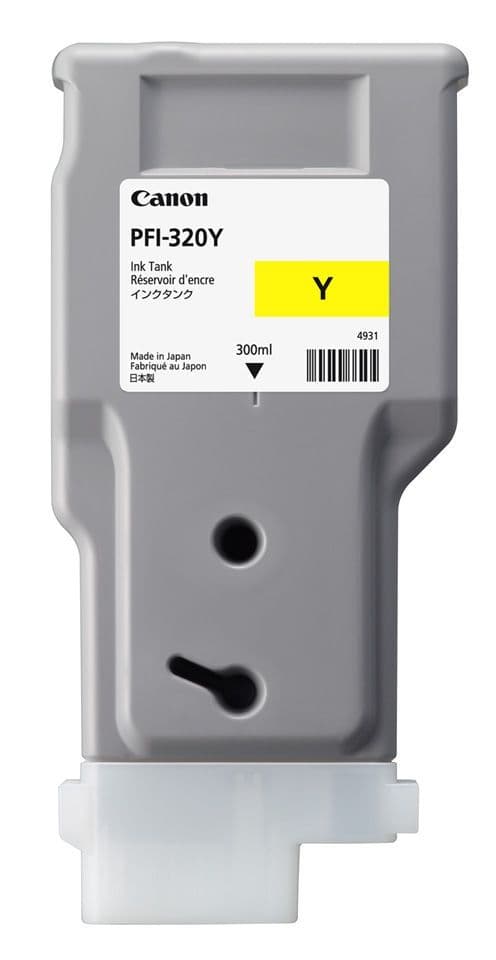

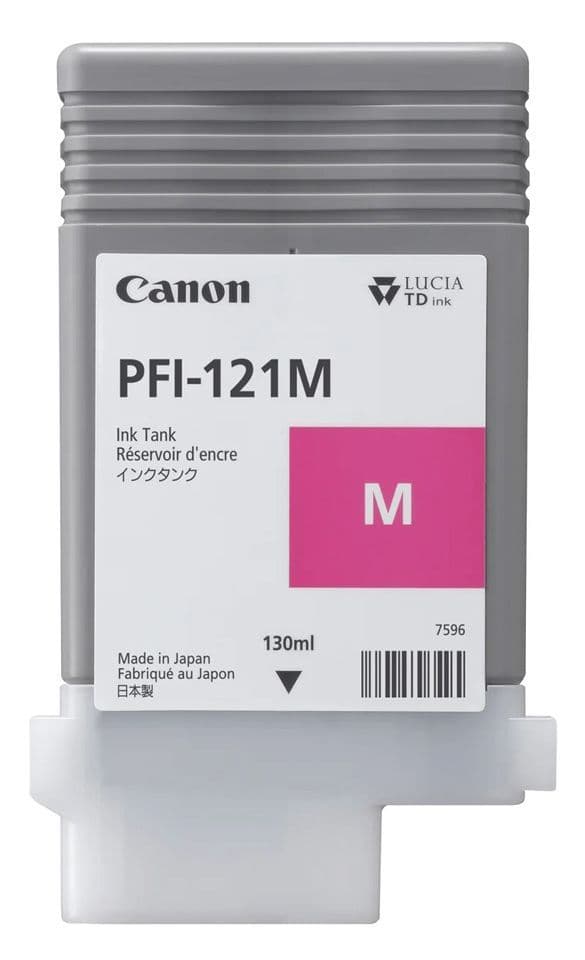

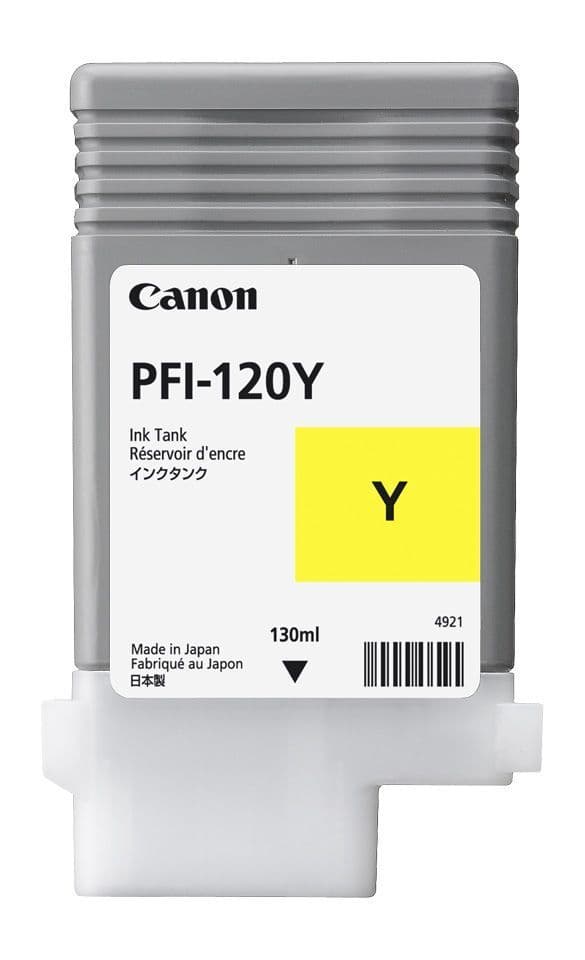

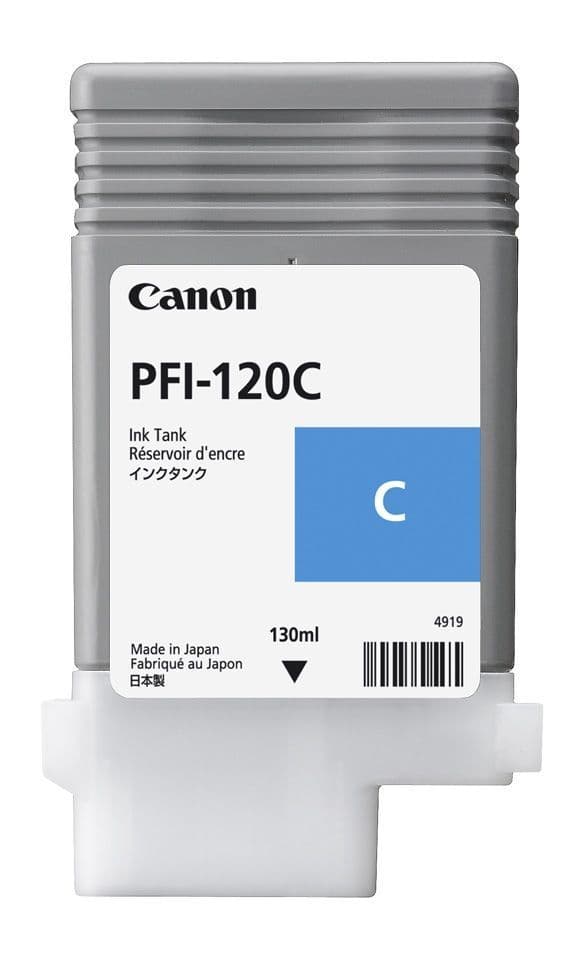

Inks for Your Printer

The PF-06 fits all three series, but each series uses its own inks. A new print head is filled from your ink tanks, so check you have enough ink before fitting it:

Order a maintenance cartridge at the same time, as filling a new head and the cleaning cycles add waste ink. TX Series printers use the Canon MC-30 Maintenance Cartridge (1156C002AB); TA and TM Series printers use the Canon MC-31 (1156C005AB).

Why Use a Genuine Canon PF-06 Print Head?

The print head is the part of your printer that places every drop of ink on the page, so its condition decides the quality of every print. A genuine Canon PF-06 is built and tested to work with Canon inks and your printer's maintenance system.

• Restores sharp lines and clean colour when cleaning no longer clears missing nozzles or banding
• Canon FINE technology with droplets as small as 4 picolitres for fine detail and accurate line work
• Works with your existing Canon inks on TA, TM and TX Series printers
• Full printer recognition, so the printer can run its automatic ink fill and head alignment
• 12-month warranty when used with genuine Canon inks

Ideal For

• CAD drawings, architectural plans and engineering drawings
• GIS maps, site plans and surveying drawings
• Posters, banners and point of sale
• Presentation prints and marketing graphics
• Classroom displays and educational materials

How to Replace a Canon PF-06 Print Head

You can fit a PF-06 yourself in around 15 minutes. The steps below follow Canon's procedure for the TM Series; the TA and TX Series are similar. Always follow the instructions on your printer's control panel, as menus and lever positions vary slightly by model.

Before You Start

• Check your ink levels. The printer fills the new head with ink after fitting, so make sure every ink tank has enough ink. Have spare cartridges ready if any are low.
• Let the printer cool. If you have just been printing, wait a few minutes, as metal parts near the head can be hot.
• Keep the new head sealed in its pouch until you are ready to fit it.
• Do not touch the nozzles, metal contacts or ink holes on the new head.
• Wear the gloves supplied with the print head to keep ink off your hands.

Step-by-Step Instructions

1. On the printer's HOME screen, go to Setup > Maintenance > Head replacement and select Yes. Wait while the printer prepares (around 1 to 2 minutes).
2. Open the top cover when prompted.
3. Pull the print head lock lever down towards the front.
4. Open the print head locking cover using its grip.
5. Lift out the old print head by its grips and tap OK on the screen.
6. Take the new PF-06 out of its pouch, holding it by the grips.
7. Remove the orange protective caps, holding the head over the pouch to catch any ink.
8. With the ink holes facing the front, insert the new head fully into the carriage.
9. Lower the print head locking cover to lock the head in place.
10. Push the print head lock lever back towards the rear.
11. Close the top cover.
12. The printer now fills the new head with ink, which takes around 10 minutes. Do not remove ink tanks or the maintenance cartridge during this time.
13. Load paper when asked. The printer runs an automatic head alignment so your prints line up correctly.

Watch how it is done: Video: How to replace the PF-06 print head on the imagePROGRAF TM Series (YouTube)

Need help? Call us on 0800 970 2244 and our team will talk you through it.

How to Get the Longest Life from Your PF-06

• Use genuine Canon inks to keep your warranty valid and avoid clogging.
• Print a nozzle check at least once a week, and run a cleaning only when the check shows gaps.
• Leave the printer switched on so it can run its automatic maintenance.
• Replace the maintenance cartridge when the printer asks, so waste ink is handled properly.
• Keep spare ink in stock so a tank never runs completely dry during printing.

Why Buy From iPF Store?

• Canon Platinum Partner, specialising in Canon imagePROGRAF large format printers
• 100% genuine Canon products with Canon part numbers and EANs
• Free next working day UK delivery on orders placed before 4.30pm
• Education discounts, bulk order discounts and a Price Match Promise
• Free technical support on 0800 970 2244

Canon PF-06 Print Head: Frequently Asked Questions

Which printers use the Canon PF-06 printhead?

The PF-06 fits the Canon imagePROGRAF TA-20 and TA-30; the TM-200, TM-205, TM-240, TM-250, TM-255, TM-300, TM-305, TM-340, TM-350, TM-355, TM-500, TM-510, TM-510M, TM-515, TM-600, TM-610, TM-610M and TM-615; and the TX-2000, TX-2100, TX-3000, TX-3100, TX-3200, TX-3300, TX-3310, TX-4000, TX-4100, TX-4200, TX-4300 and TX-4310.

Does the PF-06 fit the new TX-3300, TX-4300, TX-3310 and TX-4310?

Yes. The PF-06 fits all twelve TX Series printers, including the TX-3300, TX-4300, TX-3310 MFP and TX-4310 MFP. Only the Matte Black and Magenta inks change on these newer models.

Does the PF-06 fit the PRO or GP-x600S Series?

No. The imagePROGRAF PRO-2600, PRO-4600, PRO-6600, GP-2600S, GP-4600S and GP-6600S use the Canon PF-10 print head (0861C001AA). Older iPF Series printers use the PF-03, PF-04 or PF-05.

Does the PF-06 fit the TC-20 or TC-21?

No. The imagePROGRAF TC-20, TC-20M, TC-21 and TC-21M use the Canon PF-08 print head (5706C001AA). The PF-06 is for the TA, TM and TX Series.

What is the difference between 2352C001AA and 2352C001AB?

Both are the Canon PF-06 print head. 2352C001AB is the current Canon part number and 2352C001AA is the previous one. They fit the same printers.

Which maintenance cartridge should I order with the PF-06?

TX Series printers use the Canon MC-30 (1156C002AB). TA and TM Series printers use the Canon MC-31 (1156C005AB).

Is this a genuine Canon print head?

Yes. The PF-06 (2352C001AB) is a brand new, genuine Canon OEM print head supplied by iPF Store, a Canon Platinum Partner.

How do I know if my PF-06 needs replacing?

Replace the print head if nozzle checks still show gaps after several cleanings, if prints show banding or missing lines that cleaning cannot fix, or if the printer shows a print head error message.

How do I replace the PF-06 printhead?

Select Setup > Maintenance > Head replacement on the control panel, open the top cover, release the lock lever and cover, remove the old head, fit the new head after removing its orange caps, lock it in place and close the cover. The printer then fills the head with ink (around 10 minutes) and runs a head alignment. Full steps and a video guide are on this page.

Do I need ink to fit a new print head?

Yes. The printer uses ink to fill the new head after fitting, so check all ink tanks have enough ink before you start.

What warranty does the PF-06 have?

The PF-06 comes with a 12-month warranty when used with genuine Canon inks.

How quickly will my PF-06 arrive?

Order before 4.30pm for free next working day UK delivery.

What are the MPN, EAN and GTIN?

The MPN (Canon part number) is 2352C001AB (previously 2352C001AA). The EAN and GTIN are both 4549292098044.
